Fortinet FortiTester 2000F
Performance Testing and Breach Attack Simulation
Fortinet Products
FortiTester-2000F
FortiTester-2000F Network performance and security testing system for enterprises and service providers. - 1 x GE RJ45(mgmt), 4 x 10GE SFP+, 2 TB HDD Storage, SSL card for acceleration.
FortiTester-2000F Hardware plus Enterprise bundle (IPS attack PCAPs update, malware strike pack, web protection & MITRE ATT&CK signature updates), with FortiCare Premium support
FortiTester-2000F Hardware plus 1 Year Enterprise bundle (IPS attack PCAPs update, malware strike pack, web protection & MITRE ATT&CK signature updates), with FortiCare Premium support
FortiTester-2000F Hardware plus 3 Year Enterprise bundle (IPS attack PCAPs update, malware strike pack, web protection & MITRE ATT&CK signature updates), with FortiCare Premium support
FortiTester-2000F Hardware plus 5 Year Enterprise bundle (IPS attack PCAPs update, malware strike pack, web protection & MITRE ATT&CK signature updates), with FortiCare Premium support
Click here to jump to more pricing!
Overview:
FortiTester is a network security testing tool designed to identify and evaluate network security devices and applications. It can simulate network traffic, including malicious traffic, and test how security devices perform in detecting and mitigating threats. FortiTester supports a wide range of traffic types, including SSL, DDoS, and custom traffic.
It is an easy-to-use tool that allows security teams to assess the effectiveness of their network security solutions before deploying them in production environments. With FortiTester, organizations can ensure that their security infrastructure is capable of defending against advanced threats and is optimized for maximum performance.
Data Sheet FortiTester Available in:
- Appliance
- Virtual Machine
- Hosted
- Cloud
Features:
Performance Testing and Traffic Generation
HTTP, HTTPS, HTTP/2, UDP Throughput, RFC2544, SSLVPN and IPSEC testing, Traffic enterprise mix generation, and Q-in-Q traffic generation
Breach Attack Simulation
MITRE ATT&CK simulation testing, CVE-based IPS testing, Fuzzing testing, Web/IOT attacks, FortiGuard Malware strike pack, DDoS traffic generation and PCAP replay
Comprehensive API
Automate testing and simulation with full system, test simulation, and reporting API
Key Points
- Up-to-date cyber threat simulation based on real world insight of FortiGuard
- Best price and performance traffic generation and security testing system
- Flexible operation modes from one standalone device up to 8 devices combined
- Hardware, virtual appliances, and public cloud (AWS, Azure, GCP, OCI and Alibaba)
- Server-Class hardware and packetprocessing enhancements
- Throughput Testing up to 80 Gbps/ 800 Gbps Bi-directional Throughput
- Easy and Simple Web UI
FortiTester Use Cases
| Secure Infrastructure Validation: | Evaluate Advanced Threat Protection (ATP) Technology Validate Technology, People, and Process |
| Breach Attack Simulation: | MITRE ATT&CK® Simulation Pre/Post Breach Simulation |
| Vendor Bake-Off: | Datasheet Performance Evaluation Future Proofing |
| Public Cloud Testing: | Architecture Validation Load Testing in Market Places |
Highlights:
Traffic Generation and Performance Testing
- HTTP, HTTPS, and HTTP/2
- UDP (PPS/Payload)
- TCP (Throughput, TurboTCP, CPS)
- RFC 2544 / RFC 3511
- SSLVPN and IPSEC testing (CPS/RPS/CC/Throughput)
- PCAP Replay, GTP Replay
- Q-in-Q traffic generation
- Scheduled Testing (hourly, daily, monthly)
Traffic Mix
- Enterprise Mix, Fortinet Enterprise, Enterprise Lite, Custom
Protocol Support
- TCP (CIFS, SMBv2, FIX, FTP, IMAP, LDAP, NFS, POP3, RDP, SMTP, SSH), UDP, DHCP, ICMP, RTSP/RTP
Applications
- Amazon S3, AOL Chat, BitTorrent, DB2, Facebook, Gmail, GTalk, MSSQL, MySQL, NetFlix, Oracle TNS, PSQL, Twitter, WebEx, WhatsApp, Yahoo Mail, YouTube
Flexible Form Factor
- Powerful Appliances with 1G/10G/40G/100G output
- Up to 80 Gbps (3000E) and 800 Gbps (4000E x8) Bi-Directional traffic simulation
- VM form factor supporting ESXi, KVM, OpenStack
- Public Cloud support: AWS, Azure, Alibaba, GCP, OCI*
- Test Centre Mode - up to 8 devices in cluster (see model compatibility)
Breach Attack Simulation
- MITRE ATT&CK® adversary simulation
- Pre and Post breach simulation
- Comprehensive Reporting
Comprehensive Reporting
- PDF Exports
- API retrieval of cases result and reports
Security Testing
- DDoS testing (HTTP/UDP/TCP session flood)
- TCP / UDP / ICMP / IP Fuzzing Attack
- IPS Attacks (CVE-based and HTTP Evasion, Buffer Overflow, Code Injection, Path Traversal)
- Malware Strike Pack (Updated by FortiGuard daily with categories such as Ransomware and Trojan)
- Web Attacks (Cross Site scripting, SQL injection, Bad Robots, Privilege Escalation)
- Web Crawler (bulk URL replay
Extensive API Support
- Case Management
- System Management
- Object Management
- User Management
- MITRE ATT&CK Management
Third Party Integration
- Administrator and RADIUS support
- FortiSIEM v5.3.0 log integration
- SYSLOG
- SNMP traps and MIBs support
- Certification Management
- FortiOS v7.0.1+ (Security Fabric Integration)
- FortiManager v6.4.6 and 7.0.1 (License activation and FortiGuard server updates)
Deployment:

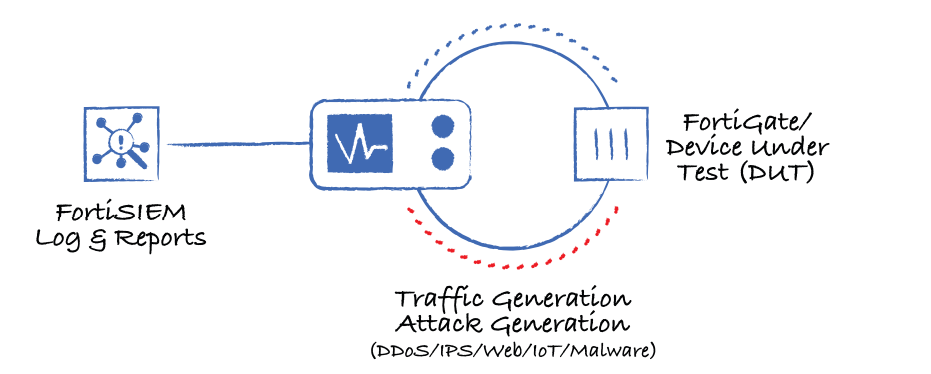

Standalone Mode
Test center works with the local traffic generator and receiver.

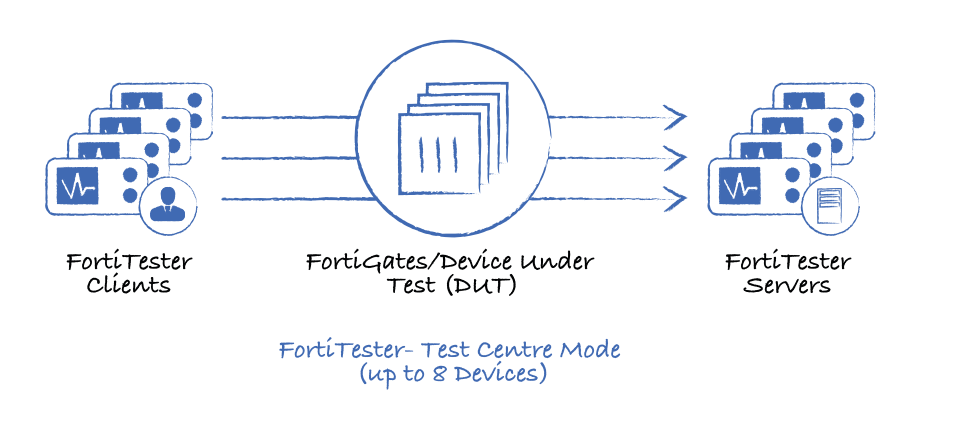

Test Centre Mode
Scale FortiTester performance by combining up to eight FortiTesters in a cluster.

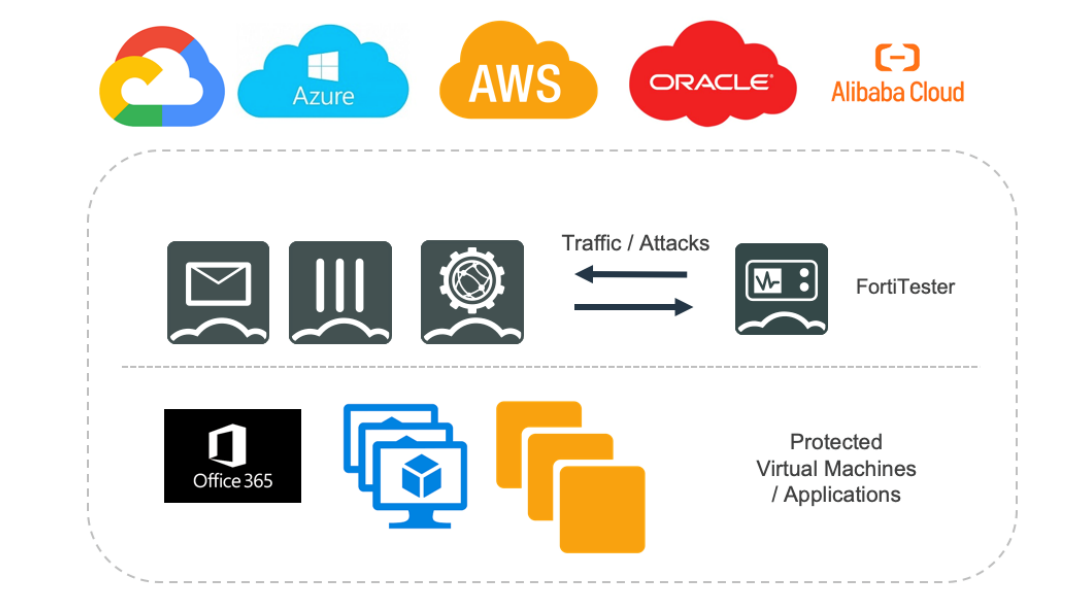

Public Cloud Support
Scale FortiTester performance by combining up to eight FortiTesters in a cluster.
Specifications:
| FortiTester 2000F | ||
|---|---|---|
| Hardware Specifications | ||
| Total Interfaces | 4x 10 GE SFP+ slots, 1x Management GE RJ45 port |
|
| Storage | 1 TB HD | |
| Form Factor | 2U | |
| SSL Acceleration Card | No | |
| Performance Examples and Application Support | Standalone mode | Test Center mode with 8 devices |
| HTTP Throughput | 20 Gbps | 160 Gbps |
| HTTP Connections Per Second | 961,000 | 7,200,000 |
| HTTP Concurrent Connections | 9,000,000 | 72,000,000 |
| SSL Throughput | 15 Gbps | 108.4 Gbps |
| SSL Connections Per Second | 18,000 | 84,000 |
| SSL Concurrent Connections | 80,000 | 640,000 |
| IPsec | 320,000 | 2,560,000 |
| SSL-VPN | Yes | Yes |
| Protocol TCP (CIFS, SMB, FIX, FTP, IMAP, LDAP, NFS, POP3, RDP, SMTP, SSH), UDP, DHCP, ICMP, RTSP/RTP | Yes | Yes |
| RFC2544 and 3511 | Yes | Yes |
| IPS, Malware, MITRE ATT&CK, FUZZING, and DDOS | Yes | Yes |
| Replay — PCAP, Traffic, Attack, GTP | Yes | Yes |
| Traffic Mix (Enterprise / Lite / Fortinet Mix) | Yes | Yes |
| Dimensions | ||
| Height x Width x Length (inches) | 1.73 x 17.24 x 22.83 | |
| Height x Width x Length (mm) | 44 x 438 x 580 | |
| Weight | 16.31 lbs (7.4 kg)) | |
| Power Required | 100–240VAC, 63-47 Hz, Redundant | |
| Power Comsumption | 216 W / 240 W | |
| Maximum Current | 120V/5A, 240V/3A | |
| Heat Dissipation | 819 BTU/h | |
| Redundant Power Supplies | Yes | |
| Environment | ||
| Operating Temperature | 32–104°F (0–40°C) | |
| Storage Temperature | -4–158°F (-20–70°C) | |
| Humidity | 5–90% non-condensing | |
| Operating Altitude | < 2000 m | |
| Compliance | ||
| Regulatory Compliance | FCC Part 15 Class A, ICES, CE, RCM, VCCI | |
| Safety | UL/cUL, CB , BSMI | |
Pricing Notes:
- All prices displayed are Ex-VAT. 20% VAT is added during the checkout process.
- 24x7 FortiCare Contract
24x7 Support, Advanced Hardware Replacement (NBD), Firmware and General Upgrades - 24x7 FortiCare plus FortiGuard Bundle Contract
Advanced Hardware Replacement (NBD), Firmware and General Upgrades, 24X7 Support, FortiDB Security Service (DBS) - Prices are for one year of Premium RMA support. Usual discounts can be applied.
- Annual contracts only. No multi-year SKUs are available for these services.
- Contact Fortinet Renewals team for upgrade quotations for existing FortiCare contracts.
- Pricing and product availability subject to change without notice.
