Fortinet FortiGate 60E-DSL/J
Secure SD WAN Next Generation Firewall
Sorry This Product is No Longer Available. Contact us for Replacement.
Click here to jump to more pricing!
Overview:
The FortiGate/ FortiWiFi 60E-DSL/J series provides an application-centric, scalable, and secure SD-WAN solution in a compact fanless desktop form factor for enterprise branch offices and mid-sized businesses. Protects against cyber threats with system-on-a-chip acceleration and industry-leading secure SD-WAN in a simple, affordable, and easy to deploy solution. Fortinet’s Security-Driven Networking approach provides tight integration of the network to the new generation of security.
Security
- Identifies thousands of applications inside network traffic for deep inspection and granular policy enforcement
- Protects against malware, exploits, and malicious websites in both encrypted and non-encrypted traffic
- Prevents and detects against known and unknown attacks using continuous threat intelligence from AI-powered FortiGuard Labs security services
Performance
- Delivers industry’s best threat protection performance and ultra-low latency using purpose-built security processor (SPU) technology
- Provides industry-leading performance and protection for SSL encrypted traffic
Certification
- Independently tested and validated best security effectiveness and performance
- Received unparalleled third-party certifications from NSS Labs
Networking
- Delivers advanced networking capabilities that seamlessly integrate with advanced layer 7 security and virtual domains (VDOMs) to offer extensive deployment flexibility, multi-tenancy and effective utilization of resources
- Delivers high-density, flexible combination of various high-speed interfaces to enable best TCO for customers for data center and WAN deployments
Management
- Includes a Management Console that is effective, simple to use, and provides comprehensive network automation & visibility.
- Provides Zero Touch Integration with Security Fabric’s Single Pane of Glass Management
- Predefined compliance checklist analyzes the deployment and highlights the best practices to improve overall security posture
Security Fabric
- Enables Fortinet and Fabric-ready partners’ products to provide broader visibility, integrated end-to-end detection, threat intelligence sharing and automated remediation
| Firewall | IPS | NGFW | Threat Protection | Interfaces |
|---|---|---|---|---|
| 3 Gbps | 400 Mbps | 250 Mbps | 200 Mbps | Multiple GE RJ45 | WiFi variants |

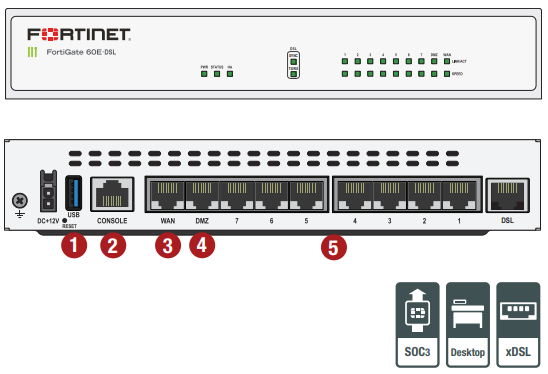

Hardware:
FortiGate 60E DSL/J
Interfaces
- 1x USB Port
- 1x Console Port
- 1x GE RJ45 WAN Port
- 1x GE RJ45 DMZ Port
- 7x GE RJ45 Internal Ports
FortiWifi 60E DSL/J
Interfaces
- 1x USB Port
- 1x Console Port
- 1x GE RJ45 WAN Port
- 1x GE RJ45 DMZ Port
- 7x GE RJ45 Internal Ports
Powered by by SPU SoC3
- Combines a RISC-based CPU with Fortinet’s proprietary Security Processing Unit (SPU) content and network processors for unmatched performance
- Simplifies appliance design and enables breakthrough performance for smaller networks
- Supports firewall acceleration across all packet sizes for maximum throughput
- Delivers accelerated UTM content processing for superior performance and protection
- Accelerates VPN performance for high speed and secure remote access
Comprehensive WAN Connectivities
The FortiGate/ FortiWiFi 60E-DSL/J includes a built-in DSL modem along with support for 3G/4G connectivity via external third-party USB modems or FortiExtender. These capabilities provide redundant links for maximum reliability.
Compact and Reliable Form Factor
Designed for small environments, you can place it on a desktop or wall-mount it. It is small, lightweight yet highly reliable with a superior MTBF (Mean Time Between Failure), minimizing the chance of a network disruption.
Superior Wireless Coverage
A built-in dual-band, dual-stream access point with internal antennas is integrated on the FortiWiFi 60E-DSL/J and provides speedy 802.11ac wireless access. The dual-band chipset addresses the PCI-DSS compliance requirement for rogue AP wireless scanning, providing maximum protection for regulated environments.
Specifications:
| FORTIGATE 60E-DSL/J | FORTIWIFI 60E-DSL/J | |
|---|---|---|
| Hardware Specifications | ||
| GE RJ45 WAN / DMZ Ports | 1/1 | |
| GE RJ45 Internal Ports | 7 | |
| Wireless Interface | - | Single Radio (2.4GHz/5GHz), 802.11 a/b/g/n/ac |
| USB Ports | 1 | |
| Console (RJ45) | 1 | |
| Internal Storage | - | |
| System Performance — Enterprise Traffic Mix | ||
| IPS Throughput | 400 Mbps | |
| NGFW Throughput | 250 Mbps | |
| Threat Protection Throughput | 200 Mbps | |
| System Performance and Capacity | ||
| Firewall Throughput (1518 / 512 / 64 byte UDP packets) | 3/3/3 Gbps | |
| Firewall Latency (64 byte UDP packets) | 3 μs | |
| Firewall Throughput (Packets Per Second) | 4.5 Mpps | |
| Concurrent Sessions (TCP) | 1.3 Million | |
| New Sessions/Second (TCP) | 30,000 | |
| Firewall Policies | 5,000 | |
| IPsec VPN Throughput (512 byte) | 2 Gbps | |
| Gateway-to-Gateway IPsec VPN Tunnels | 200 | |
| Client-to-Gateway IPsec VPN Tunnels | 500 | |
| SSL-VPN Throughput | 150 Mbps | |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 200 | |
| SSL Inspection Throughput (IPS, avg. HTTPS) | 135 Mbps | |
| SSL Inspection CPS (IPS, avg. HTTPS) | 135 | |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 75,000 | |
| Application Control Throughput (HTTP 64K) | 650 Mbps | |
| CAPWAP Throughput (HTTP 64K) | 890 Mbps | |
| Virtual Domains (Default / Maximum) | 10 / 10 | |
| Maximum Number of FortiSwitches Supported | 16 | |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 30 / 10 | |
| Maximum Number of FortiTokens | 500 | |
| High Availability Configurations | Active - Active, Active - Passive, Clustering | |
| Dimensions | ||
| Height x Width x Length (inches) | 1.7 x 8.5 x 7.1 | |
| Height x Width x Length (mm) | 42.5 x 215 x 180 | |
| Weight | 2.4 lbs (1.1 kg) | 2.8 lbs (1.3 kg) |
| Form Factor | Desktop | |
| Operating Environment and Certifications | ||
| Input Rating | 12Vdc, 5A | |
| Power Required | Powered by External DC Power Adapter, 100–240V AC, 50/60 Hz | |
| Current (Maximum) | 1.5A | 1.6A |
| Power Consumption (Average / Maximum) | 16 W / 18 W | 16 W / 19.2 W |
| Heat Dissipation | 61.4 BTU/h | 65.5 BTU/h |
| Operating Temperature | 32–104°F (0–40°C) | |
| Storage Temperature | -31–158°F (-35–70°C) | |
| Humidity | 10–90% non-condensing | |
| Noise Level | -40 dBA | |
| Operating Altitude | Up to 7,400 ft (2,250 m) | |
| Compliance | FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB | |
| Certifications | ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN | |
Fortinet Fabric Security:
Security Fabric
The industry’s highest-performing cybersecurity platform, powered by FortiOS, with a rich ecosystem designed to span the extended digital attack surface, delivering fully automated, self-healing network security.
- Broad: Coordinated detection and enforcement across the entire digital attack surface and lifecycle with converged networking and security across edges, clouds, endpoints and users
- Integrated: Integrated and unified security, operation, and performance across different technologies, location, deployment options, and the richest Ecosystem
- Automated: Context aware, self-healing network & security posture leveraging cloud-scale and advanced AI to automatically deliver near-real-time, user-to-application coordinated protection across the Fabric
FortiOS™ Operating System
FortiOS, Fortinet’s leading operating system enable the convergence of high performing networking and security across the Fortinet Security Fabric delivering consistent and context-aware security posture across network endpoint, and clouds. The organically built best of breed capabilities and unified approach allows organizations to run their businesses without compromising performance or protection, supports seamless scalability, and simplifies innovation consumption. The release of FortiOS 7 dramatically expands the Fortinet Security Fabric’s ability to deliver consistent security across hybrid deployment models consisting on appliances, software and As-a-Service with SASE, ZTNA and other emerging cybersecurity solutions.
Services
FortiGuard™ Security Services
FortiGuard Labs offers real-time intelligence on the threat landscape, delivering comprehensive security updates across the full range of Fortinet’s solutions. Comprised of security threat researchers, engineers, and forensic specialists, the team collaborates with the world’s leading threat monitoring organizations and other network and security vendors, as well as law enforcement agencies.
FortiCare™ Services
Fortinet is dedicated to helping our customers succeed, and every year FortiCare services help thousands of organizations get the most from their Fortinet Security Fabric solution. We have more than 1,000 experts to help accelerate technology implementation, provide reliable assistance through advanced support, and offer proactive care to maximize security and performance of Fortinet deployments.
Documentation:
Download the Fortinet FortiGate 60E-DSLJ Series Data Sheet (PDF).
