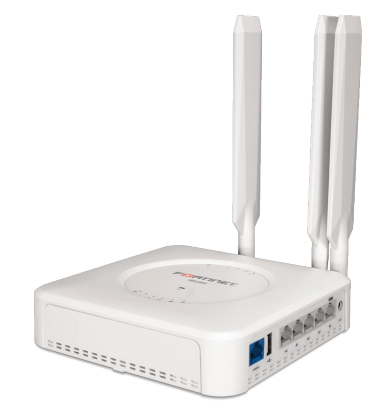

Fortinet FortiExtender 201E
3G/4G LTE Wireless WAN Extenders
Sorry, this product is no longer available, please contact us for a replacement.
Click here to jump to more pricing!
Overview:
Enterprises are increasingly taking advantage of wireless WAN technology not only as a backup for their wired WAN connections, but also as the primary WAN connection in locations such as; small branch offices, retail “pop-up” stores, Point of Sale systems and kiosks. A FortiExtender 3G/4G LTE Wireless WAN Extender enables a reliable and stable connection to support these applications.
Security Fabric Integration
Integration with FortiGate provides single pane of
glass management of the wired and wireless WAN
connections and security reduces Total Cost of
Ownership for your WAN.
Designed for Optimal Signal Strength
Can be located indoors or outdoors to maximize
3G/4G LTE signal strength (up to 100m from the
FortiGate appliance or network switch) without
using lossy antenna cables or limited strength
USB modems.
Simplified Management Options
Manage your FortiExtender from the FortiGate
or from the cloud. FortiExtender Cloud offers
hosted management of an unlimited number
of FortiExtenders anywhere in the world.
Highlights
- Enables placement of 3G/4G Wireless modem outdoors or close to a window, improving signal strength
- Provides a secondary failover WAN link to improve business continuity
- Provides a primary WAN link for retail POS, remote ATM machines and remote kiosk-type systems
- Reduces WAN TCO through single pane of glass management integration with the FortiGate Network Security Platform
- Cloud-based management available and ideal for large-scale, geographically dispersed locations
- 4 LAN ports and basic routing enable remote connectivity and networking for remote locations
- PoE powered
- Supports single modem with multiple ISP or dual modems with multiple ISP
Features:
Superior Management, Security and Control
FortiExtenders are a true plug-and-play device. Once connected to the FortiGate, they appear as a regular network interface in FortiOS, providing single pane of glass management. This enables administrators to manage the connection as well as implement complete UTM security and control, just like any other FortiGate interface. In addition, FortiOS will display data quota usage on the wireless WAN interface, providing complete visibility of the connection to ensure costly carrier data limits are not exceeded. The superior management, security and control of the FortiExtender ultimately reduces the Total Cost of Ownership for your WAN.
Flexible Deployment for Optimal Signal Strength
FortiExtender devices have been engineered to be installed in the best possible location to achieve maximum 3G/4G LTE wireless signal strength. The unit is powered using Power over Ethernet with both indoor and outdoor models available, enabling the device to be located for optimal signal strength, even up to 100m away from the FortiGate or Network Switch.
FortiOS Web-based GUI — complete FortiExtender visibility and control.
FortiExtender can be placed near a window or outdoors for optimal signal strength.
Flexible LTE Connectivity
The FortiExtender family of LTE appliances all support dual SIM cards per radio enabling the option of using two different ISPs for LTE connectivity. While only one SIM card can be active on any radio, the dual SIM option enables you to switch between ISP providers to optimize your connectivity and minimize your costs. For example, you can configure the FortiExtender to utilize the link from ISP A until a certain data usage threshold is reached. At that point, FortiExtender can automatically shift over to ISP B and use that LTE connection. Additional conditions can be set to shift the connection between the two SIM cards, all to enable the optimal balance of connectivity and cost.
Switch between ISPs based on cost or data usage
Mix LTE and Cable/DSL connections for load-balancing and/or failover
Flexible WAN Connectivity
The 200 series of FortiExtender offers new WAN connectivity options with an Ethernet WAN port, in addition to the LTE WAN links. With this WAN port, you can connect to a DSL, cable, or another modem for additional WAN connectivity options. Load-balancing and failover options enable your FortiExtender to manage your WAN connections across several options to ensure connectivity at the best cost point.
Flexible LAN Connectivity
The 200 series of FortiExtender offers four LAN Ethernet ports to enable multiple connections to the LTE connection. Ideal for High Availability (HA) pairs of FortiGates, each FortiGate can be directly connected to the FortiExtender. Either FortiGate can run in load-balancing or failover modes and receive WAN connectivity from the FortiExtender.
Easily supports two FortiGates in HA mode without additional hardware
Specifications:
| FEX-40D-XXX | FEX-201E | ||
|---|---|---|---|
| Hardware and System | |||
| Modem Support | Internal | Internal (1x Modem) | |
| Number of Antennas | 3 SMA External | 3 SMA External | |
| Power over Ethernet (PoE) Powered | IEEE 802.3af (15.4 W) | IEEE 802.3af (15.4 W) | |
| Ethernet Ports | 1 GE RJ45 Port | 5 GE RJ45 Ports (WAN + LAN) | |
| GPS Antenna Port | Yes | Yes | |
| Mounting Options | Wall Mount / Desktop | Wall Mount / Desktop | |
| Type | Indoor | Indoor | |
| Dimensions | |||
| Height x Width x Length (inches) | 1.75 x 7 x 6 (not including antenna length) | 1.57 x 6.3 x 6.3 (not including antenna length) | |
| Height x Width x Length (mm) | 45 x 180 x 155 (not including antenna length) | 40 x 160 x 160 (not including antenna length) | |
| Weight | 0.83 lb (0.38 kg) | 1.2 lbs (0.55 kg) | |
| Environment | |||
| Operating Temperature | 32–104°F (0–40°C) | 32–104°F (0–40°C) | |
| Storage Temperature | -4–158°F (-20–70°C) | -4–158°F (-20–70°C) | |
| Humidity | 5–95% | 5–95% | |
| Certifications | |||
| CB | IEC/EN 60950-1 | IEC/EN 60950-1 | |
| UL | UL/CSA 60950-1 | UL/CSA 60950-1 | |
| FCC | FCC Part 15 Subpart B and ICES-003 | FCC Part 15 Subpart B and ICES-003 | |
| CE | EMC 2014/30/EU (EN 55032, EN 55024, EN 61000-3-2, EN 61000-3-3) RED 2014/53/EU (EN 301 489-1, EN 301 489-52, EN 301 908-1, EN 301 908-2, EN 301 908-13, EN 303 413) LVD 2014/35/EU (IEC/EN 60950-1) RoHS2 Directive 2011/65/EU |
EMC 2014/30/EU (EN 55032, EN 55024, EN 61000-3-2, EN 61000-3-3) RED 2014/53/EU (EN 301 489-1, EN 301 489-52, EN 301 908-1, EN 301 908-2, EN 301 908-13, EN 303 413) LVD 2014/35/EU (IEC/EN 60950-1) RoHS2 Directive 2011/65/EU |
|
| FEX-40D-NAM | FEX-40D-INTL | FEX-40D-AMEU | FEX-201E | |
|---|---|---|---|---|
| Regional Compatibility | ||||
| United States, Canada and Mexico | Europe, Middle East, Central America (except Mexico), South America and Australia | North and South America and EMEA Carriers | ||
| Internal Modem Specifications | ||||
| Modem Model | Sierra Wireless EM7455 | Sierra Wireless EM7305 | Sierra Wireless EM7455 | |
| LTE | CAT-6 | CAT-3 | CAT-6 | |
| 4G: LTE | Bands: 1,2, 3, 4, 5, 7, 8, 12, 13, 20, 25, 26, 29, 30, 41 | Bands: 1, 3, 7, 8, 20 | Bands: 1, 2, 3, 4, 5, 7, 8, 12, 13, 20, 25, 26, 29, 30, 41 | |
| 3G: UMTS/HSPA+ | Bands: 1, 2, 3, 4, 5, 8, | Bands: 1, 2, 5, 8 | Bands: 1, 2, 3, 4, 5, 8 | |
| 3G: WCDMA | Bands: 1, 2, 3, 4, 5, 8 | Bands: 1, 2, 3, 4, 5, 8 | ||
| 2G: CDMA 1xRTT/EV-DO Rev A | NA | N/A | ||
| 2G: GSM/GPRS/EDGE | NA | Quad Band 850/900/1800/1900 MHz | N/A | |
| Additional Ports | GPS antenna port | N/A | GPS antenna port | |
| Connector Type | SMA (MAIN, AUX, GPS) | SMA (MAIN, AUX) | SMA (MAIN, AUX, GPS) | |
| Module Certifications | FCC, PTCRB, NCC | CE, GCF, NCC, FCC | FCC, IC, CE | |
| Diversity | Yes | Yes | Yes | |
| MIMO | Yes | Yes | Yes | |
| GNSS Bias | Yes | Yes | Yes | |
| XLTE (band bonding) | Yes | No | Yes | |
| Advanced Radio Technology | 2x2 MIMO — Enables industry leading data speeds Receiver Equalization — Improves performance in noisy and highly mobile environments Receiver Diversity — Improves performance at cell edges and in buildings |
|||
| Advanced Software Features | Connection status | |||
| Auto-connect | ||||
| Auto-select network | ||||
| Data byte count | ||||
| Network profile | ||||
| Self-diagnostics | ||||
| Power management — Standby & hibernate selective suspend | ||||
| DIAG & AT Commands | ||||
| IMEI located on outer box and device for simple activation by Verizon | ||||
| Private IP SIM support | ||||
| L2 and L3 Tunnel modes via VLAN and CAPWAP for fast and flexible deployments | ||||
| Single pane of glass management via FortiGate and FortiManager | ||||
| SIM Features | Dual-SIM support with intelligent fail-over algorithms | |||
| SIM size: Mini-SIM type 2FF | SIM size: Mini-SIM type 2FF | SIM size: Mini-SIM type 2FF | SIM size: Micro-SIM type 3FF | |
| SIM security cover | ||||
| IMEI printed at bottom of enclosure for ease of activation | ||||
| Carrier Certifications | Verizon | Verizon | Verizon | Verizon |
| AT&T | AT&T | AT&T | ||
| PTCRB | PTCRB | PTCRB | ||
Certification notes:
In general, you can activate the FEX-40D internal modem with most worldwide carriers, then simply install a SIM card and create a wireless WAN link.
The built-in modem offers quad-band connectivity to HSPA+ networks worldwide and expected to work in 3G mode worldwide, subject to carrier support.
There are exceptions however, as some carriers control the access to their network to specific carrier certified devices. These carriers allow only certified modem IMEI numbers on their network and have the ability to disable the LTE connection after a period of time.
The following carriers are known to require additional testing to obtain certification. Please reach out to the Fortinet sales team and to evaluate your specific regional requirements: Brazil (VIVO), USA (Sprint), New Zealand, Arabian Peninsula (all carriers), UK (All carriers).
Documentation:
Download the Fortinet FortiExtender Series Data Sheet (PDF).
